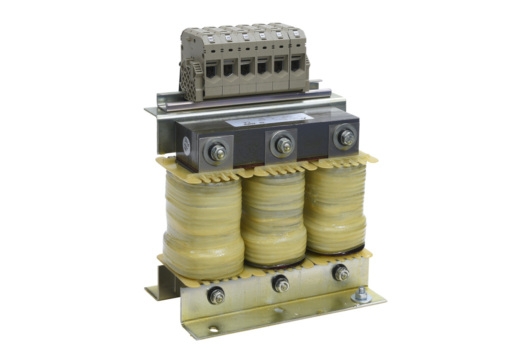

Type | AC MAIN SUPPLY CHOKE |
---|---|
Applicable Inverter | FR-F800 FR-E800 FR-D700-SC FR-A800 FR-A741 |
Rated Voltage (V) | 400 |
Current Type | AC |
Phases | 3 |
Inductance (mH) | 0,068 |
Rated Capacity (kW) | 160 |
Rated Current (A) | 325 |
Power Loss (W) | APROX. 285 |
Protection Class | IP20 |
Width (mm) | 240 |
---|---|
Height (mm) | 325 |
Depth (mm) | 205 |
Weight (kg) | 32 |
