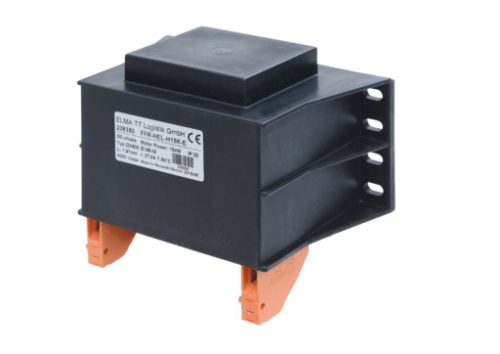

Type | DC LINK CHOKE |
---|---|
Applicable Inverter | FR-F800 FR-E800 FR-A741 FR-A800 FR-D700-SC |
Rated Voltage (V) | 400 |
Current Type | DC |
Inductance (mH) | 1,97 |
Rated Capacity (kW) | 15 |
Rated Current (A) | 27,5 |
Power Loss (W) | 33,5 |
Protection Class | IP20 |
Width (mm) | 133,2 |
---|---|
Height (mm) | 85 |
Depth (mm) | 112 |
Weight (kg) | 3 |
