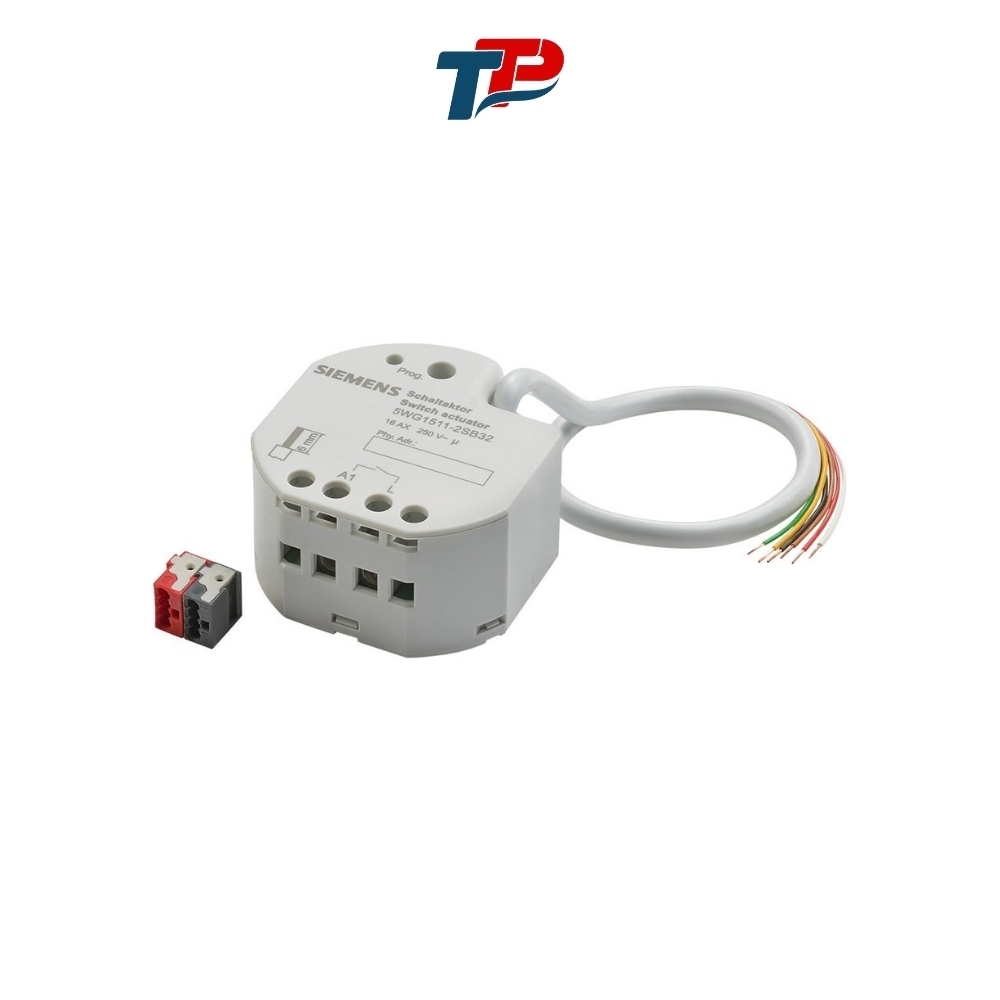

5WG1511-2SB32

- Rated current: 16 A - Number of channels: 1 - Dimensions (W x H x D): 48 x 50 x 28 mm - Warranty: 24 Months

• 5WG1525-2SB32

• S55770-T222

• S55180-A172

• S55376-C160

• S55561-F241

• S55499-D235

• SKC32.61

• S55700-P144

• S55174-A215

• Z155/100

• One relay contact per output
• Rated contact operating voltage: AC 230 V
• Rated contact frequency: 50/60 Hz
• Rated contact current: 16 A
• Screw terminals for connection of untreated single-core conductors, stranded without conductor sleeve 0.5 to 4 mm², stranded with conductor sleeve 0.5 to 2.5 mm²
• 3 binary inputs for potential-free contacts, determination of switching status via voltage generated in the device
• Poll voltage of the inputs: approx. 5 V
• Max. 10 m length of connecting cables, preferably J-Y(St)Y, pre-assembled YY6x0.6
• Bus-powered electronics
• Integrated bus coupling unit
• Mounting in appliance boxes according to DIN 49073 or in mounting case M 592/01 (accessories)

Additional functionalities GAMMA

• KNX Data Secure compatible
• Updateable with Siemens Firmware Download Tool
• Switching output optionally directly operable via input 1 or input 1 and 2
• Adjustable functions of switching output: status feedback, active status signalling function, adjustable as NO or NC contact, adjustable preferred position after download, adjustable preferred position in case of bus voltage failure and recovery, cyclical monitoring of switching output, adjustable switch-on and switch-off delay, staircase function, 8-bit scene control, logic operations, operating hours counting with limit value monitoring, disabling function or forced control, central switching function
• Adjustable functions of each input: switching, dimming, colour temperature control, solar protection control, sending values (1 byte, 2 byte, 3 byte, 6 byte), scene control, pair of inputs operation, controller extension (operating mode switchover, presence function, setpoint shift)
• Adjustable debounce time per input
• Adjustable locking of each input via locking object
• 8 logic functions (logic gate, value converter, disabling element, comparator, limit value switch)
