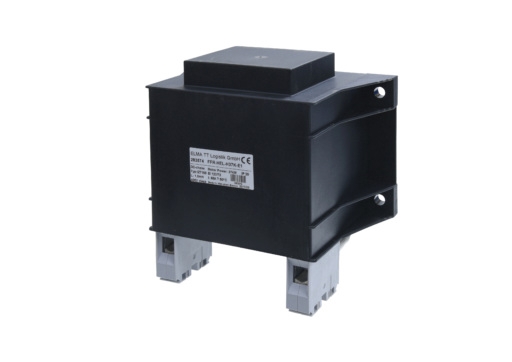

Type | DC LINK CHOKE |
---|---|
Applicable Inverter | FR-A741 FR-A800 FR-D700-SC FR-E800 FR-F800 |
Rated Voltage (V) | 400 |
Current Type | DC |
Inductance (mH) | 1 |
Rated Capacity (kW) | 37 |
Rated Current (A) | 68 |
Power Loss (W) | 44,3 |
Protection Class | IP20 |
Width (mm) | 172 |
---|---|
Height (mm) | 107 |
Depth (mm) | 186 |
Weight (kg) | 8 |
