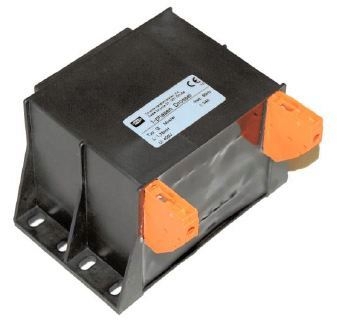

Type | DC LINK CHOKE |
---|---|
Applicable Inverter | FR-F800 FR-A741 FR-A800 FR-D700-SC FR-E800 |
Rated Voltage (V) | 200 |
Current Type | DC |
Inductance (mH) | 1,25 |
Rated Capacity (kW) | 5.5 |
Rated Current (A) | 25 |
Power Loss (W) | 31,3 |
Protection Class | IP20 |
Width (mm) | 133,2 |
---|---|
Height (mm) | 85 |
Depth (mm) | 112 |
Weight (kg) | 3,1 |
